Extruded 1/2" x 1/2" Mini Mesh Chain Link

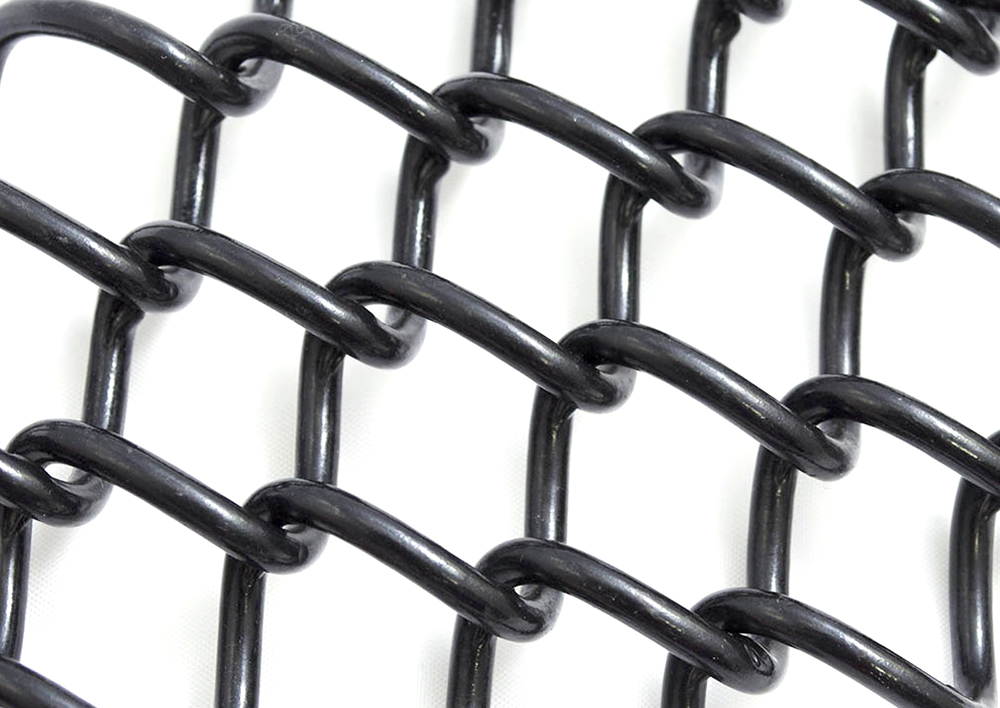

extruded chain link mini meshExtrusion is a process used to manufacture complex cross-sectionals and is ideal for shaping brittle materials. Extruded materials are clean-cut and have extra smooth surfaces.

It's no wonder how our 1/2" x 1/2" extruded chain link fence mini mesh trumps the rest. Extruded mini mesh has a very smooth surface finish, ensuring clothing won't get snagged on wire. The small link size makes mini mesh a staple in the high security fence industry. All mini mesh is covered by a warranty, and the high quality material is resistant to corrosive elements and pollutants.

Feet (in Rolls): 25, 50
Gauges/Cores: 3 (.192), 6 (.145), 8 (.117), 9 (.117), 9 (.101), 9 (.095), 11 (.080)
Heights: 18", 24", 36", 42", 48", 60", 72", 84", 96", 108", 120", 132", 144", 156", 168", 180", 192", 204", 216", 228", 240"
Colors: Mini mesh is available in a variety of colors. If you need a color tailored to your needs, we will find it for you! Please contact us for availability.

1/2 inch mini mesh diagram

Find Your 1/2" x 1/2" Extruded Mini Mesh:

Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 1.62
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 2.16
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 3.24
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 3.78
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 4.32
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 5.4
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 6.48
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 7.56
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 8.64
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 9.72
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 10.8
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 11.88
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 12.96
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 14.04
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 15.12
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 16.2
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 17.28
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 18.36
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 19.44
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 20.52
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 11 GA (.080 Core) 21.6



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 2.745
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 3.66
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 5.49
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 6.405
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 7.32
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 9.15
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 10.98
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 12.81
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 14.64
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 16.47
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 18.3
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 20.13
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 21.96
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 23.79
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 25.62
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 27.45
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 29.28
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 31.11
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 32.94
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 34.77
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.095 Core) 36.6



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 2.925
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 3.9
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 5.85
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 6.825
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 7.8
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 9.75
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 11.7
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 13.65
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 15.6
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 17.55
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 19.5
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 21.45
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 23.4
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 25.35
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 27.3
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 29.25
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 31.2
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 33.15
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 35.1
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 37.05
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.101 Core) 39



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 3.63
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 4.84
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 7.26
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 8.47
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 9.68
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 12.1
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 14.52
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 16.94
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 19.36
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 21.78
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 24.2
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 26.62
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 29.04
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 31.46
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 33.88
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 36.3
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 38.72
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 41.14
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 43.56
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 45.98
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 9 GA (.117 Core) 48.4



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 4.365
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 5.82
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 8.73
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 10.185
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 11.64
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 14.55
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 17.46
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 20.37
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 23.28
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 26.19
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 29.1
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 32.01
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 34.92
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 37.83
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 40.74
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 43.65
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 46.56
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 49.47
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 52.38
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 55.29
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 8 GA (.117 Core) 58.2



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 6 GA (.145 Core)



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
24" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
36" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
42" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
48" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
60" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
72" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
84" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
96" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
108" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
120" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
132" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
144" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
156" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
168" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
180" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
192" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
204" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
216" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
228" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
240" 25' or 50' 1/2" x 1/2" Knuckle Knuckle 3 GA (.192 Core)
