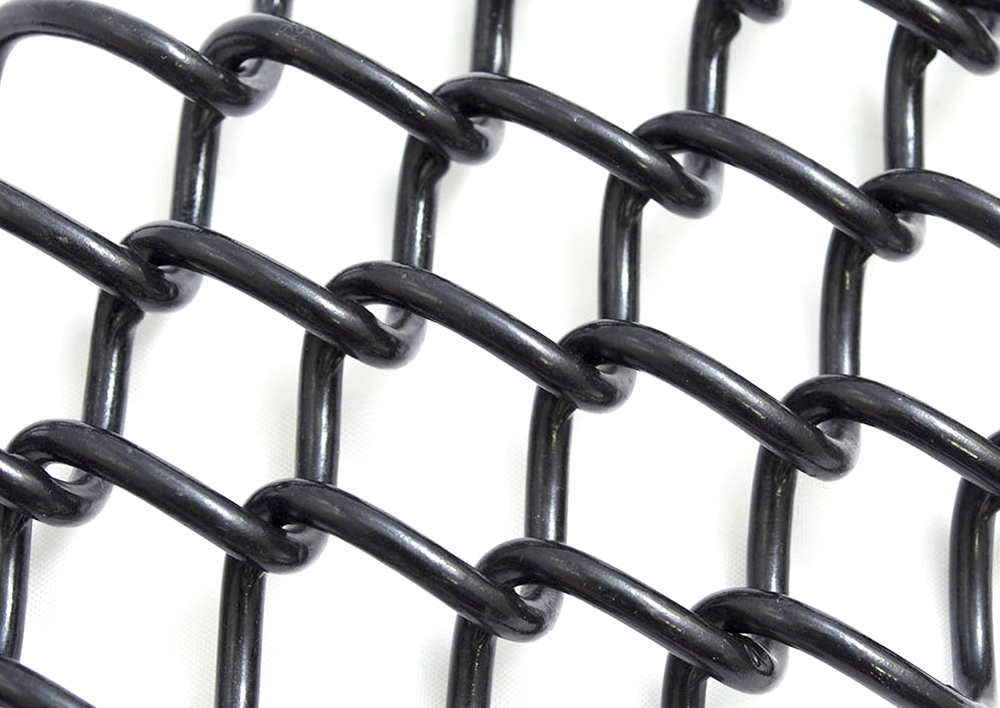

Extruded 1" x 1" Mini Mesh Chain Link
Our 1" x 1" extruded chain link fence mini mesh beats the rest. Extrusion is a process used to manufacture complex cross-sectionals and is ideal for shaping brittle materials. Extruded mini mesh undergoes a special process that forms the wire into a durable product with a very smooth surface finish, ensuring clothing won't get snagged on wire.
The small link size makes mini mesh a staple in the high security fence industry. All mini mesh is covered by a warranty, and the high quality material is resistant to corrosive elements and pollutants.
Feet (in Rolls): 25, 50
Gauges/Cores: 3 (.192), 6 (.145), 8 (.117), 9 (.117), 9 (.101), 9 (.095), 11 (.080)
Heights: 18", 24", 36", 42", 48", 60", 72", 84", 96", 108", 120", 132", 144", 156", 168", 180", 192", 204", 216", 228", 240"
Colors: Mini mesh is available in a variety of colors. If you need a color tailored to your needs, we will find it for you! Please contact us for availability.
Find Your 1" x 1" Extruded Mini Mesh:
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 0.885 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 1.18 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 1.77 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 2.065 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 2.36 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 2.95 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 3.54 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 4.13 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 4.72 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 5.31 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 5.9 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 6.49 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 7.08 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 7.67 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 8.26 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 8.85 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 9.44 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 10.03 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 10.62 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 11.21 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 11 GA (.080 Core) | 11.8 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 1.158 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 1.544 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 2.316 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 2.702 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 3.088 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 3.86 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 4.632 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 5.404 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 6.176 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 6.948 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 7.72 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 8.492 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 9.264 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 10.036 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 10.808 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 11.58 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 12.352 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 13.124 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 13.896 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 14.668 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.095 Core) | 15.44 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 1.239 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 1.652 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 2.478 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 2.891 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 3.304 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 4.13 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 4.956 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 5.782 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 6.608 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 7.434 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 8.26 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 9.086 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 9.912 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 10.738 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 11.564 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 12.39 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 13.216 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 14.042 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 14.868 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 15.694 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.101 Core) | 16.52 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 1.59 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 2.12 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 3.18 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 3.71 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 4.24 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 5.3 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 6.36 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 7.42 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 8.48 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 9.54 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 10.6 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 11.66 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 12.72 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 13.78 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 14.84 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 15.9 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 16.96 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 18.02 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 19.08 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 20.14 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 9 GA (.117 Core) | 21.2 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 1.818 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 2.424 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 3.636 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 4.242 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 4.848 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 6.06 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 7.272 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 8.484 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 9.696 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 10.908 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 12.12 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 13.332 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 14.544 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 15.756 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 16.968 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 18.18 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 19.392 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 20.604 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 21.816 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 23.028 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 8 GA (.117 Core) | 24.24 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 2.325 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 3.1 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 4.65 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 5.425 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 6.2 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 7.75 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 9.3 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 10.85 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 12.4 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 13.95 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 15.5 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 17.05 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 18.6 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 20.15 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 21.7 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 23.25 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 24.8 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 26.35 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 27.9 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 29.45 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 6 GA (.145 Core) | 31 |
| Fabric Height | Roll Size | Mesh Size | Selvage | Gauge | Weight / Per Foot (LBS) |
| 18" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 4.77 |
| 24" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 6.36 |
| 36" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 9.54 |
| 42" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 11.13 |
| 48" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 12.72 |
| 60" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 15.9 |
| 72" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 19.08 |
| 84" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 22.26 |
| 96" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 25.44 |
| 108" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 28.62 |
| 120" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 31.8 |
| 132" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 34.98 |
| 144" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 38.16 |
| 156" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 41.34 |
| 168" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 44.52 |
| 180" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 47.7 |
| 192" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 50.88 |
| 204" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 54.06 |
| 216" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 57.24 |
| 228" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 60.42 |
| 240" | 25' or 50' | 1" x 1" | Knuckle Knuckle | 3 GA (.192 Core) | 63.6 |
