Extruded 5/8" x 5/8" Mini Mesh Chain Link

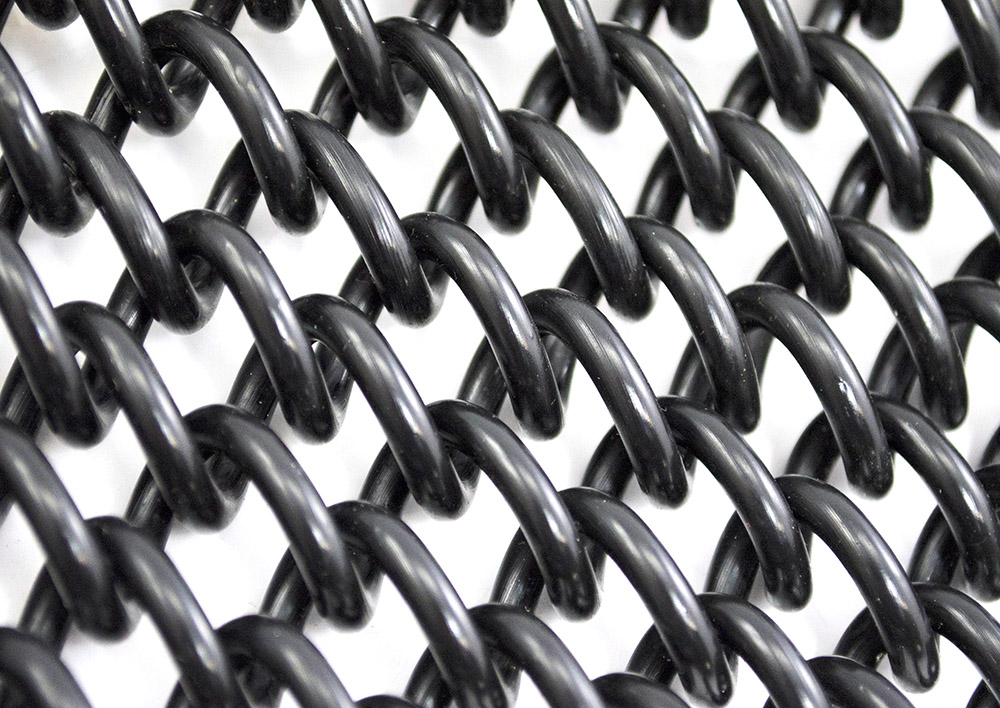

extruded chain link mini meshExtrusion is a process used to manufacture complex cross-sectionals and is ideal for shaping brittle materials. Extruded mini mesh undergoes a special process that forms wire into a durable product with a very smooth surface finish.

Our 5/8" x 5/8" extruded chain link fence mini mesh is manufactured to be durable, long-lasting, and corrosive resistant, resulting in a heavy-duty barrier for all of your fencing needs. Intruders are no match for the small link size of mini mesh.

Feet (in Rolls): 25, 50
Gauges/Cores: 3 (.192), 6 (.145), 8 (.117), 9 (.117), 9 (.101), 9 (.095), 11 (.080)
Heights: 18", 24", 36", 42", 48", 60", 72", 84", 96", 108", 120", 132", 144", 156", 168", 180", 192", 204", 216", 228", 240"
Colors: Mini mesh is available in a variety of colors. If you need a color tailored to your needs, we will find it for you! Please contact us for availability.

5/8 inch mini mesh diagram







Find Your 5/8" x 5/8" Extruded Mini Mesh:

Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 1.35
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 1.8
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 2.7
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 3.15
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 3.6
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 4.5
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 5.4
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 6.3
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 7.2
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 8.1
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 9
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 9.9
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 10.8
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 11.7
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 12.6
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 13.5
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 14.4
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 15.3
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 16.2
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 17.1
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 11 GA (.080 Core) 18



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 2.13
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 2.84
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 4.26
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 4.97
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 5.68
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 7.1
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 8.52
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 9.94
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 11.36
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 12.78
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 14.2
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 15.62
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 17.04
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 18.46
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 19.88
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 21.3
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 22.72
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 24.14
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 25.56
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 26.98
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.095 Core) 28.4



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 2.13
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 2.84
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 4.26
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 4.97
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 5.68
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 7.1
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 8.52
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 9.94
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 11.36
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 12.78
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 14.2
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 15.62
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 17.04
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 18.46
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 19.88
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 21.3
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 22.72
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 24.14
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 25.56
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 26.98
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.101 Core) 28.4



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 3
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 4
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 6
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 7
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 8
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 10
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 12
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 14
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 16
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 18
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 20
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 22
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 24
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 26
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 28
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 30
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 32
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 34
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 36
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 38
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 9 GA (.117 Core) 40



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 2.91
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 3.88
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 5.82
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 6.79
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 7.76
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 9.7
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 11.64
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 13.58
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 15.52
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 17.46
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 19.4
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 21.34
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 23.28
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 25.22
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 27.16
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 29.1
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 31.04
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 32.98
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 34.92
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 36.86
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 8 GA (.117 Core) 38.8



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 6 GA (.145 Core)



Fabric Height Roll Size Mesh Size Selvage Gauge Weight / Per Foot (LBS)
18" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
24" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
36" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
42" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
48" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
60" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
72" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
84" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
96" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
108" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
120" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
132" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
144" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
156" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
168" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
180" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
192" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
204" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
216" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
228" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
240" 25' or 50' 5/8" x 5/8" Knuckle Knuckle 3 GA (.192 Core)
